Device X v 0.3

We have been really busy and excited at the Lab because we are now finishing the first full version of the prototype for the mobile health device for health clinics in Uganda in partnership with UNICEF. New prototype. New prototype on, example of a menu screen with ATM style buttons. This version, finally includes all […]

By

-->

We have been really busy and excited at the Lab because we are now finishing the first full version of the prototype for the mobile health device for health clinics in Uganda in partnership with UNICEF.


New prototype.

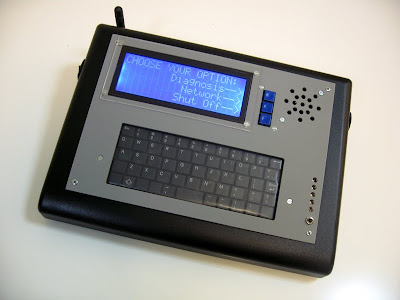

New prototype on, example of a menu screen with ATM style buttons.

This version, finally includes all the hardware and software capabilities such as GSM/GPRS module, ability to join a specific network and to send SMS text messages to a given server and many more improvements.

Detail of the ON/OFF switch and the power plug for external power supply.

Right side shows the volume knob and the LED power meter.

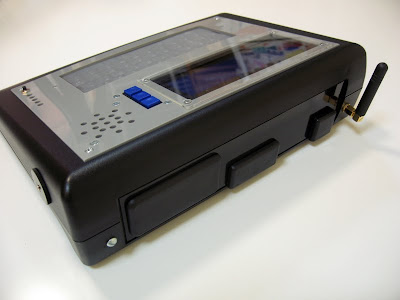

Back panel shows GSM antenna and back plugs for battery compartment, USB and SD card access and SIM card access.

The device has an improved flow with many options which include checking for signal and signal strength, ability to set proper cellular band and send free form text messages on top of the diagnosis and patient registration text messages that are pre-formatted by the device itself.

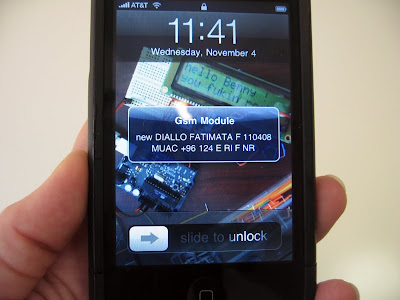

Example of a received SMS message from the device with full patient personal information and medical symptoms and diagnosis.

And here’s a video of Device X working. It shows you how to join a server, send a free form text message, do patient diagnosis, pull up a patient record and upload the data. And it speaks British English now!
